EPEC SC52 SAFETY CONTROL UNIT

Epec SC52 is a state-of-the-art controller for safety-related systems in mobile machinery. Outputs in SC52 have a high-side current measurement, so only one I/O pin is needed to control proportional valves.

SC52 offers a flexible solution for software-based safety function implementation. Together with the SC52 controller, Epec offers a set of pre-certified PLCopen application libraries in order to reduce customer’s safety related software development effort.

› Read more about Epec’s functional safety solutions

  • Up to SIL2 (IEC 61508:2010 and IEC 62061:2005) and PLd/Cat 3 (ISO 13849-1:2015), as a stand-alone controller
  • Support for Cat2 architecture when using intelligent safety certified sensors
  • Processor: 32 bit multicore CPU with lock-step and memory protection
  • Flash memory: 8 Mbyte
  • RAM: 512 kbyte
  • PLCopen application size: up to 1024 kbyte
  • CAN: 2
  • I/O: 22 (14 inputs + 8 outputs)
  • IP class: IP67
  • Temperature range: -40 … + 85 °C
    -40 … +185 °F
  • Connectors: 1 x AMP 35
  • CODESYS version: 3.5 SP10
  • CODESYS V3 Safety SIL 2 programming
  • Supported CAN protocols: CANopen, CANopen Safety, SAEJ1939
  • CANopen Safety protocol for safety-related communication according to EN50325-5
  • Extensive set of pre-certified PLCopen libraries for safety related applications
  • Three-colored diagnostic LED for quick status check and fault detection
Frontside measurements of an Epec SC52 Safety control unit

Connector side measurements of an Epec SC52 Safety control unit

Side profile measurements of an Epec SC52 Safety control unit

Symbol / Name Explanation
CEThis product complies with the requirements set in the CE Standard.
E17This product is certified with normal automotive (E17) EMC (electromagnetic compatibility) standards.
RoHS2This product complies with the RoHS directive (The Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment).
EU declaration of conformityThis device is in compliance with Directive 2014/53/EU.
EpecSC52DeclarationOfConformity

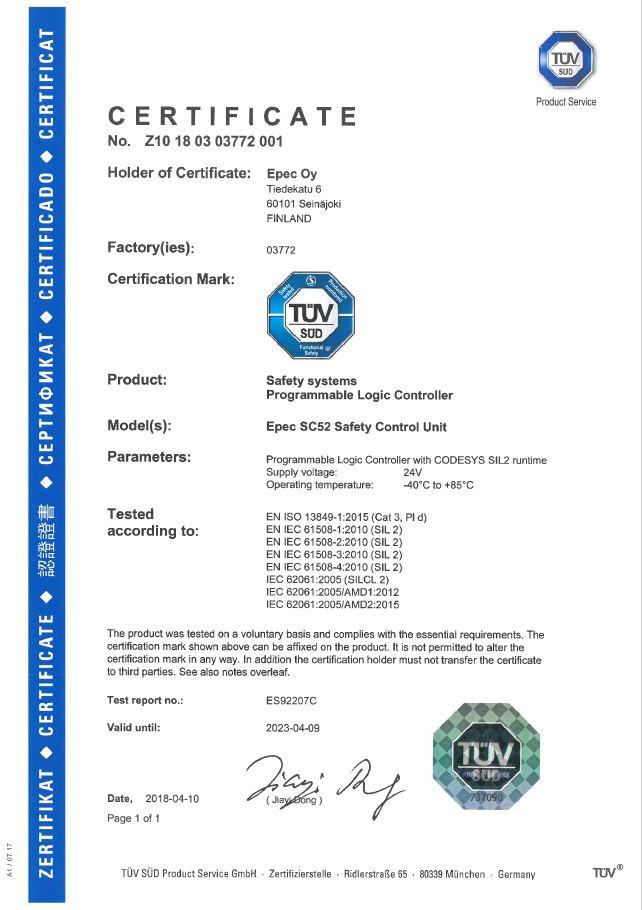

Functional Safety Certification
TÜV SÜD Certification and EC-Type examination no. Z10 18 03 03772 001
EN ISO 13849:2015 Up to PL d Cat 3
EN IEC 61508:2010 Up to SIL 2
IEC 62061 Up to SIL 2
Certification also includes yearly Epec factory inspection
Ordering codeE30FSC52-020
Technical ManualMAN000676
Safety ManualMAN000674
CAN2
5 V REF2
PWM / DO
8
AI / DI5
AI / DI (CAT2)5
AI / DI / PI4
CODESYS version3.5 SP10
