Epec 4,3" Display Unit

EPEC 4,3″ DISPLAY UNIT

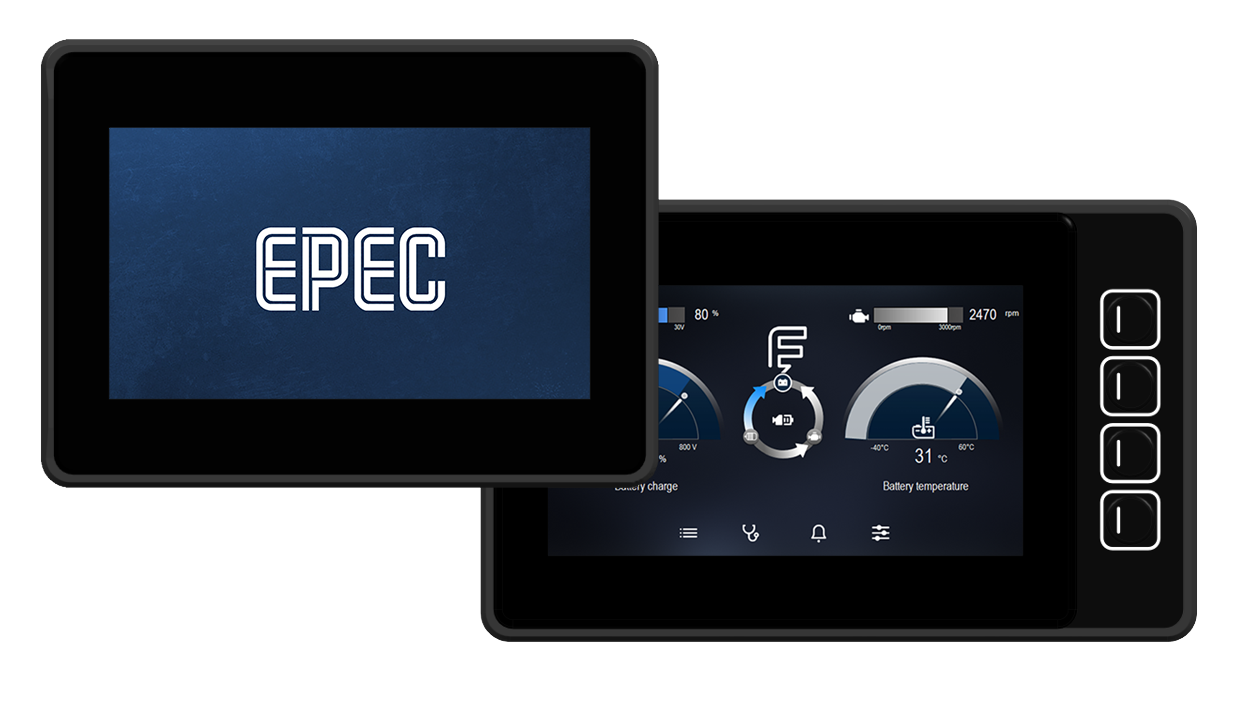

Epec 4,3″ display unit is built for demanding environments in industries like agriculture, construction, and mining, offering adaptability to suit various applications. Customers can select between configurations with or without touch functionality, or with physical buttons, ensuring optimal usability for different operational needs. This allows for seamless integration into different modern control systems, enhancing flexibility and efficiency.

This display can also function as an ISOBUS terminal in agricultural machinery. ISOBUS (ISO 11783) ensures standardized communication across multi-brand equipment, enabling smooth data exchange between tractors, implements, and other devices. This interoperability simplifies workflows, reduces setup times, and optimizes precision agriculture operations.

Key benefits:

  • Visibility and Clarity: With a brightness level  up to 900 nits, the display ensures excellent readability even in direct sunlight.
  • Flexible User Interfaces: The device can be tailored to suit specific operational needs enhancing usability across different applications and preferences:
    • Display only or with 4 buttons
    • Touch only or with 4 buttons
  • Wake-Up Functionality: KL15 wake-up input allows the device to power on automatically with ignition signals, streamlining operations and reducing manual interventions.
  • Connectivity: Equipped with two CAN bus ports and a USB Type-C port, the display supports integration and data transfer with other systems. The internal buzzer enhances functionality by providing audible alerts.
  • Programming: Support for C/C++ or CODESYS platforms, enabling efficient and customizable application development. Please note that this 4,3″ display does not support Epec MultiTool by default.
  • Mounting: The display can be installed as a standalone unit or integrated into a dashboard, allowing it to fit seamlessly into diverse environments.



  • Processor: 32-bit MPU
  • Flash memory: 2 GB
  • RAM: 256 MByte
  • Display size and type: TFT Color Graphic LCD with LED backlight. Optically bonded with cover glass panel.
  • Touch (optional): PCT, Multi (5) Gloves support
  • Resolution: 480 x 272 WQVGA, 16:9
  • Display brightness: up to 900 cd/
  • Indicators and Sensor: Optional 4 keys with fluorescent print w/o Backlight, internal buzzer
  • CAN: 2
  • USB: 1 x Type C High Speed
  • IP class: IP65 and IP67
  • Temperature range:
    -30… +75 °C

    -22…+167 °F

  • Connectors: Main connector Deutsch DT06-08SA 8- pin,  USB Type C

  • CODESYS version: 3.5.19

  • Supported communication protocols: CANopen, SAEJ1939, ISOBUS





    Symbol / Name Explanation
    CEThis product complies with the requirements set in the CE Standard.
    E1This product is certified with normal automotive (E1) EMC (electromagnetic compatibility) standards.
    RoHS2This product complies with the RoHS directive (The Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment).
    EU declaration of conformityThis device is in compliance with Directive 2014/53/EU. For more information, refer to the product's technical manual.
    Epec ordering codeTopcon product codeFeaturesLink to manuals
    190158OPUSB2EN1CANF000C++/Qt programming, display with touch OPUS B2e
    190153OPUSB2EN1CDSF000CODESYS programming, display with touch
    190156OPUSB2EN1CANB000C++/Qt programming, only display
    190157OPUSB2EN1CDSB000CODESYS programming, only display
    190172OPUSB2EN1ISOF000ISO-VT, display with touch
    190160OPUSB2SN1CANF000C++/Qt programming, display with touch + 4 keys OPUS B2s
    190150OPUSB2SN1CDSF000CODESYS programming, display with touch + 4 keys
    190159OPUSB2SN1CANB000C++/Qt programming, display + 4 keys
    190154OPUSB2SN1CDSB000CODESYS programming, display + 4 keys
    190168OPUSB2SN1ISOF000ISO-VT, display with touch + 4 keys
