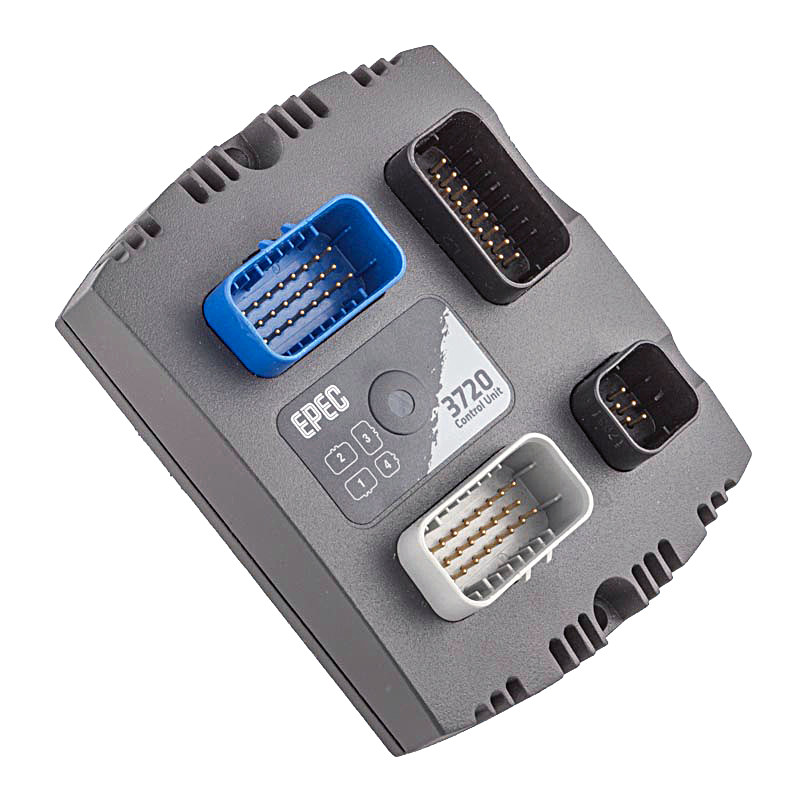

EPEC 3720 CONTROL UNIT

Need to connect 10 propo valve pairs? Epec 3720 control unit is specially optimized for hydraulic actuator control with a high amount of PWM outputs and feedback pins. Epec 3720 I/O interface is compatible with the previous Epec 2020 control unit and gives an easy upgrade possibility. Furthermore, Epec 3720 comes in the same rugged proven-in-use aluminum housing and reliable connectors



  • Processor: 16/32 bit CPU
  • Flash memory: 1,6 MByte
  • RAM: 1024 kByte (external), 138 kByte (internal)
  • PLCopen application size: up to 768 kByte
  • CAN: 1 or 2
  • I/O: 59 (35 inputs + 24 outputs)
  • IP class: IP67
  • Temperature range: -40 … + 85 °C
    -40 … +185 °F
  • Connectors: 3 x AMP23, 1 x AMP8
  • CODESYS version: 2.3
  • Supported CAN protocols: CANopen, SAEJ1939

Ordering codeE30B3720-21E30B3720-01E30B3720-02
Technical Manual IDMAN000671MAN000673MAN000672
CAN222
5 V REF111
Internal CAN termination--yes (always on)
PWM / DO / DI
(pull-down)
888
PWM / DO / DI
(pull-up resistor)
161616
FB / AI
(1 A)
-20 (10 pairs)20 (10 pairs)
FB / AI
(2 A)
20 (10 pairs)--
AI / DI
(0-5 V / 0-22 mA, internal 2,2 kΩ resistor connected to +5 V )
111
AI / DI
(0-5 V / 0-22 mA)
555
AUX OUT (max 4 A)2 (shared current)2 (shared current)2 (shared current)
