Epec GL84 Responder/Slave Unit

EPEC GL84 RESPONDER/SLAVE UNIT

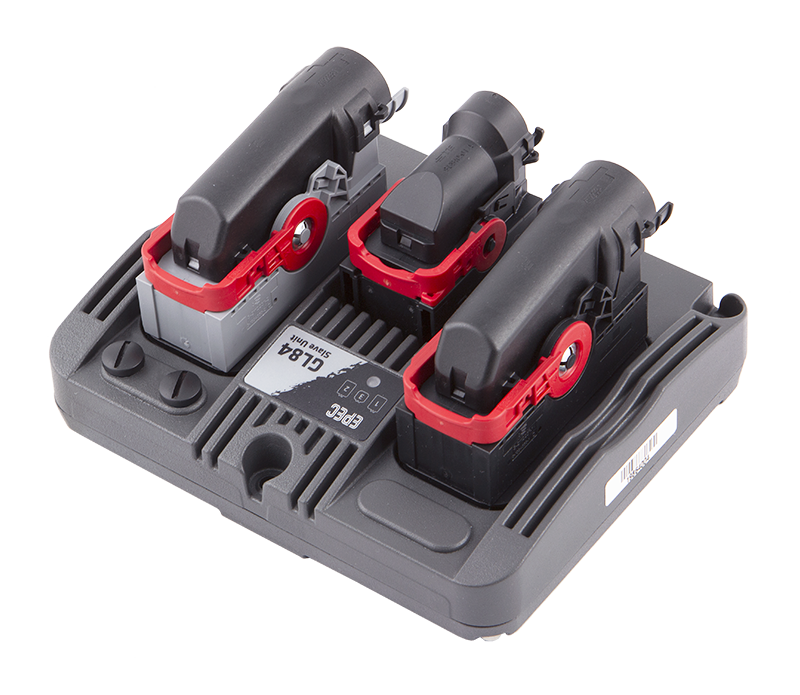

Epec GL84 Responder/Slave Unit is a responder product for centralized control system architecture where one master/central unit controls multiple responders. GL84 has 27 GND pins for sensors and actuators and CAN1 is also routed to M12 connectors for easy wiring. GL84 Responder/Slave Unit’s cycle time is extremely fast – it feels like the I/O is actually connected to the master/central unit.

The unit has a housing and connector solution that enables plenty of I/O in a compact housing. The casing works to protect the electronics against mechanical wear. The leak-proof aluminum housing has also been widely tested against different environmental conditions, the housing is even protected against high-pressure washing (IP69).

The unit is equipped with a signal LED for diagnostics. The unit’s LEAVYSEAL connectors have integrated strain relief and lever locking that are designed for high vibration environments. Single Wire Seal (SWS) system also ensures safe and robust sealing for wires.

  • Processor: 32 bit CPU
  • CAN: 2
  • I/O: 69 (35 inputs + 34 outputs)
  • REF pins (5 V): 4
  • GND pins: 27
  • 5 A POWER_DO outputs
  • Total current up to 60 A
  • Three power supply groups – Safety cut-off feature in a group of 10 PWM/DO outputs
  • IP class: IP69
  • Temperature range:
    -40 … + 85 °C
    -40 … +185 °F
  • Connectors:
    2 x LEAVYSEAL 46 pin
    1 x LEAVYSEAL 21 pin
    2 x M12 5 pin
  • Programming:
    User programming not possible
    Device configuring and controlling via Object Dictionary
  • Supported CAN protocols: CANopen
  • Three-colored diagnostic LED for quick status check and fault detection

Symbol / Name Explanation
CEThis product complies with the requirements set in the CE Standard.
E17This product is certified with normal automotive (E17) EMC (electromagnetic compatibility) standards.
RoHS2This product complies with the RoHS directive (The Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment).
Functional Safety CertificationTÜV SÜD Certification and EC-Type examination no. Z10 003772 0003 Rev. 02
EN ISO 13849 Up to PL d, Cat 3
EN IEC 61508 Up to SIL 2
IEC 62061 Up to SIL 2
Only in combination with an external safety system reaching minimum SIL 1, Cat 3, PL c
Certification also includes yearly Epec factory inspection
Ordering codeE30SGL84-020
Technical ManualMAN000685
CAN2
5 V REF3
PWM / DO20
DO 5 A4
DO 3 A8
DO (GND) 3 A2
AI / DI15
PI/DI10
PI/DI (threshold 2,6 V)10
