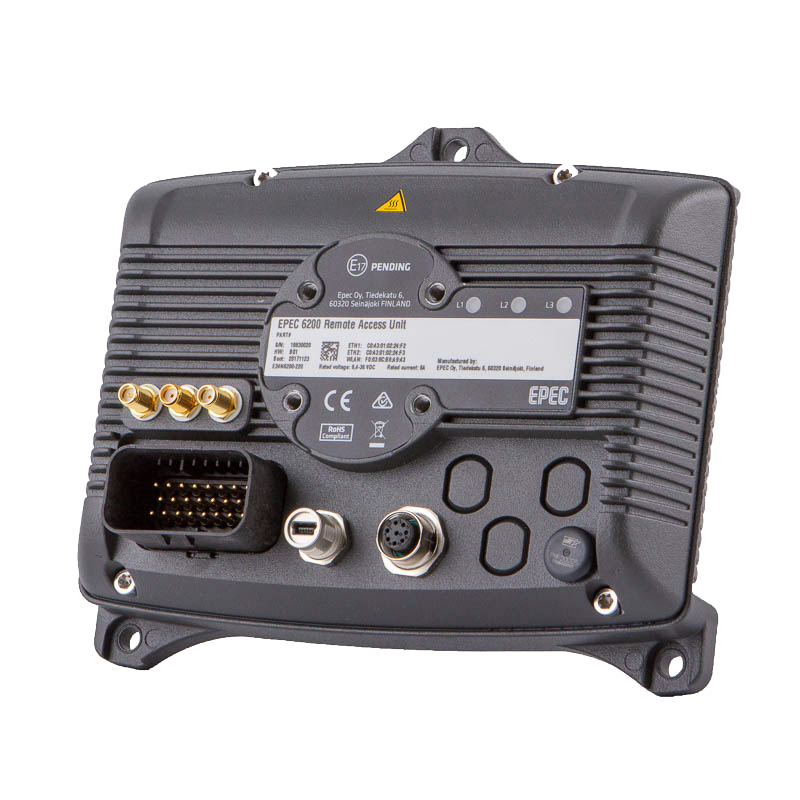

Epec 6200 Remote Access Unit
EPEC 6200 REMOTE ACCESS UNIT
Epec 6200 Remote Access Unit offers versatile possibilities for remote access. Epec 6200 has a wide range of communication interfaces and it is wrapped in slim and leak-proof rugged aluminum housing. Three diagnostic LEDs offer you quick status information.
Together with Epec’s IoT Services you’ll get the fastest to configure and most reliable IoT system/remote management solution in the market.
In case there is an occasional need for a grafical interface in the machine, with Epec 6200 and WebVisu solution you can use for example a smart phone as a temporary HMI when the machine is running.
- Processor: 32 bit CPU
- Flash memory: 4-16 GByte
- RAM: 1024 MByte
- CAN: 2
- Ethernet: 2
- USB: 1
- RS-232: 1
- GSM / UMTS / HSPA+
- GPS / GLONASS
- I/O: 5 (3 inputs and 2 outputs or 5 inputs and 0 outputs)
- IP class: IP67
- Temperature range:
-30 … + 60 °C
-22 … +140 °F
- Connectors: 1 x AMP23, 2 x M12, 3 x SMA
- CODESYS version: 3.5
- Supported CAN protocols: CANopen, SAEJ1939
- 3 two-colored diagnostic LED for quick status check and fault detection
|Symbol / Name||Explanation|
|CE||This product complies with the requirements set in the CE Standard.|
|E17||This product is certified with normal automotive (E17) EMC (electromagnetic compatibility) standards.|
|RoHS2||This product complies with the RoHS directive (The Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment).|
|FCC||This device is authorized under the SDoC procedure and has the option to use the FCC logo to indicate compliance with the FCC rules.|
|RCM||This product complies with the ACMA (Australian Communications and Media Authority) regulatory arrangements concerning electromagnetic compatibility and radio equipment.|
|Radio Equipment Directive||Epec 6000 series units comply with Radio Equipment Directive (2014/53/EU).|
|EU declaration of conformity||This device is in compliance with Directive 2014/53/EU. For more information, refer to the product's technical manual.|
All of the communication interfaces are optional, you can select only the ones you need.
› Technical Manual
› Programming and libraries manual
tested, designed and produced in finland.
Epec control systems are made 100% in Finland. We are a control system expert, specializing in intelligent control systems and information systems for even the most demanding conditions. Epec’s organization and processes have been fine tuned to cooperate with large international customers.
